Cat Auto Feeder,CSF-3 Basic for Custom Mount

Super Feed
(You save $6.50)
Availability Normally ships same or next business day with delivery average time of 1-4 days. Qualifies for an additional 10% off. See "DISCOUNTS" link at bottom or top of each page.
Bulk Pricing
  • Buy 2 - 4 and get 5% off
  • Buy 5 or above and get 7% off

Create Wishlist

Original CSF-3 Super Feeder serviceable for years to come, made in USA and sold by Super-Feed for over 23 years! All parts readily available and easy to replace if ever needed. Mount it your very own way to fit your application. Adjust it from very tiny to larger portions. Some Wi-Fi/automation/voice command systems may also be used.  See how Google example works for a customer if wanting to use voice activation.

Main picture from customer shows two feeders mounted to cat play stand and triggered at very same time with one timer.  Although it will feed a cup or even more with multiple feeding cycles, if you need to feed your cat, rabbit or other small pets very small portions several times a day and don't want anything large, this"basic" Super Feeder package HOLDS 1 QUART AND 3/4 CUP (1.5 lb of food) and can be easily increased later using extra clear extensions or a 1.5 gallon hopper (24 cups capacity available separately). It will dispense dry or slightly moist kibbles/pellets extremely well, like the "Special Kitty" and "Happy Cat Moist" brands as an example. Voltage required: Power supply 110-240VAC 50-60Hz 12VDC output, USA style plugs only-not battery operated.  If a 120V power source is not available, you may even use any of our 6-24V timers listed here to use your own low voltage power source (some wiring required).

NOTE: MAKE SURE you have in your possession a lamp timer or other type device like a wi-fi system to "trigger" your Super Feeder at desired programmed times. This package does not come with an external timer.  You may also check "Feeder Combos" for complete set-ups including a timer or wi-wi plug of your choice to suit your needs. This "basic" feeder package comes with a black powder-coat metal bracket, strap, two 2 polycarbonate clear extensions (2-cup capacity each), a 12VDC power supply that you will plug into a timer, hardware and instructions manual.  It does not include items to mount to like wood stand, etc..., only hardware.

This package deal is intended for indoor use and will require some simple mounting handyman works.  IT MUST BE MOUNTED TO A 2X4 IN YOUR GARAGE OR PATIO, A PIPE, OR YOU CAN MAKE A SIMPLE WOOD MOUNT AND BASE. THIS BASIC" MODEL IS NOT DESIGNED FOR FREE-STANDING USE TO KEEP IT FROM BEING TIPPED OVER. IMPORTANT NOTE:  IF PLANNING ON INSTALLING THIS FEEDER OUTDOORS, MAKE SURE YOU ADEQUATELY PROTECT AT LEAST THE CHUTE AREA WHERE THE FOOD COMES OUT (BOXED-IN IS BEST).  IF YOU HAVE RACCOONS, YOU MUST DO THAT.   Also, if you believe the supplied standard indoor type power supply will be exposed to weather/rain, you must use our outdoor power supply kit or choose an outdoor combo.



cat-and-csf-3-on-play-stand.jpgsplitter-setup-3.jpgbilly-rabbit-2.jpgdogtraining-2.jpg full-pic-with-down-pipe-2.jpg full-pic-fromtop-down-2.jpg full-pic-elbow-to-down-pipe-2.jpg

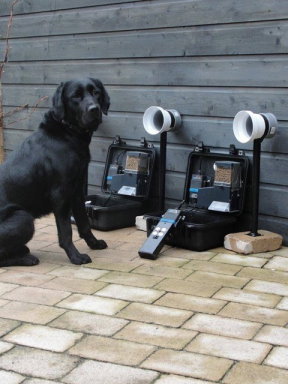

Customer examples of various outdoor installations.


NOTE: Small 1/4" round (spherical) kibbles like offered by Science Diet or other brands are recommended for best portion accuracy, but most other kibbles will work fine up to 5/8" diameter with perhaps a slightly reduced portion accuracy.  Please be aware that the feeder will not “count’ kibbles, but tests have shown that an overall portion accuracy of +/- 0.1 to 0.2 ounce from one portion to another is possible. Although performance is guaranteed with recommended food as described, please be advised that due to variance of kibble sizes and shapes, 100% portion accuracy simply cannot be guaranteed for all feed cycles.  That would of course apply to any feeder other than one with pre-filled compartments.

NOTE: USING A NAME BRAND LIKE "SCIENCE DIET" IS ONLY A BRAND EXAMPLE.  Many brands have similar recommended type kibbles.

Voltage required: Power supply (included) 110-240VAC 50-60Hz 12VDC output--USA style plugs only-not battery operated.

How to operate the Super Feeder® with a cell phone, iPad, Android device or home automation system with with voice command like Alexa or other type like Google :

First, be sure to adjust your super feeder's desired portion size by plugging the power supply into a power outlet and adjusting the feed duration controller with the little supplied plastic screwdriver as explained in your feeder's manual or video.  Then plug the power supply into the Smart Plug after you have installed it just like you would a lamp.

System we tested and recommend:

The TP-LINK HS100 Smart Wi-Fi Plug is perfect to control your Super Feeder® remotely for up to 15 meals/snacks per day.  It is one of the easiest we tested to install and use.  Just follow directions included with the Smart Wi-Fi Plug.  All you will need to do once installed is program suggested 2 minutes of "on" time for each feed cycle time of day you want.  Make sure you program "on" and "off" time, i.e. 8:00 AM and off at 8:02 AM for each time of day you want to feed your pet.  Also select all or certain days of the week you want to trigger your Super Feeder® to feed your pet.  The feeder runs only for time in seconds you previously adjusted the feeder to give you the portion needed and then stops. You may of course trigger your Super Feeder®  anytime by remotely turning it on for a few seconds and turning it back off yourself from your device.  You may install and operate several Wi-Fi Plugs and feeders simultaneously in different places within range of local Wi-Fi.   Note:  The feeder must have been powered down for at least 2 minutes between feed cycles to assure it triggers again.  If it has not been off long enough like repeatedly turning it on and off, the feeder will not work, which is normal.  You could also control the Super Feeder® by voice command using this TP-LINK Smart Plug compatible with Amazon Alexa®.  The TP-Link Camera could be a great addition.  Many ways to operate your Super Feeder®.  This is what makes it so unique!

A great companion to this Super Feeder combo would be adding the Kasa KC120 Cam 1080p Smart Home Security Camera by TP-Link.  Unlike so many other built-in cheap camera feeders, that separate day/night camera is perfect because you can place it where you want and vary the field of vision and close-up on whatever you want as well as being able to record, speak and listen to your pet.  Makes a great pet monitoring system!


Other systems recommended by past customers:

For Wi-Fi control, the Wemo Wi-Fi switches by Belkin have been used successfully. Various systems that are currently being used are available from   Note:  Some systems offered on the market today suffer from perpetual changes and updates rendering some systems unusable if not compatible with certain Wi-Fi systems.  Some Wi-Fi switches on the market may not work if the socket does not turn off completely (some do and some may not like used for dimming lights), meaning that any residual power coming out of it during its off time will prevent the feeder from resetting itself between programmed feed cycles and will prevent it from triggering.

Using various timers:

You still retain the option to use just about any type of common lamp timer to operate your Super Feeder®.  Anything that will turn on a lamp or appliance will trigger and operate the Super Feeder®.


Video examples:


Custom mounted with flat tray and camera near-by  (early model without chute protective device):

Product Reviews

Score: 5 out of 5 (based on 5 ratings)
leave a review
This is a fantastic outdoor feeder
Written by Tina on 19th Dec 2016

We've had the large feeder with the big capacity hopper for 3 years. It has done very well and held up to many many raccoons that are now living at a local state park. 3 years almost to the day the biggest raccoon we've ever seen climbed the feeder and ripped the front off of the chute area so we had to get a replacement (he also now lives at the state park and we have plans for a box around the feeder). I decided on this one for the spare parts. I will continue to buy Superfeeders so long as they're selling them!

Simple design, installation, and use
Written by Tori on 15th May 2015

After watching the instructional video, I was able to adjust the feeder timing and quantity with easy. I have had nothing but great interaction with customer service. I built a wood box to put the feeder in with a dividing chute so i could feed 2 cats at the same time. The machine is a little noisy when it is running but that is good to alert the cats that it is feeding time. They got used to it after a few feedings. Great product! Well constructed and easy to use. I think this will last for years to come!

No more whining.
Written by Steve on 14th Jan 2015

Pets can be trained.

Great idea for a dieting feline
Written by Robert on 13th Jan 2015

I found this feeder excellent. It was simple to assemble, install and set up. Maybe a little pricey but so far worth every penny. Mine is used to provide frequent small feedings for my overweight cat.

Customizable installation, easy to adjust, good design
Written by Danielle on 1st Nov 2014

My cat inhales his food, so every time I've gone away, he's thrown up because my catsitter visits only once a day and gives him all his food then. I didn't trust most sub-$100 feeders because he's very strong and determined, but I also couldn't justify a $500 feeder. The basic Superfeeder seemed like a good compromise. I attached it securely to heavy furniture so he couldn't knock it over, and instead of using a bowl, I just let the kibbles (Blue Buffalo) bounce on the floor so he had hunt and eat them one at a time. I used a cheap analog lamp timer, and I adjusted the feeder to release less than a quarter-cup at a time. The feeder was very dependable, and this was the first time my cat didn't throw up. The only thing I would improve is how the black lid is fastened onto the clear storage bin; I think my cat could have pried it off, so I taped it down. It did take some time and effort to install, but the instruction video was great, and I'm very pleased and relieved that I can keep his feeding schedule closer to normal when I'm gone for several days. Now I feel OK to leave him alone overnight, and it's definitely saved me lots of anxiety.
