Original KSF-2XL Super Feeder serviceable for years to come, made in USA and sold by Super-Feed for over 23 years! All parts readily available and easy to replace if ever needed. Many modes of operation, indoor or outdoor applications and ease of maintenance and repairs. Trusted brand for years and years by thousands of customers.

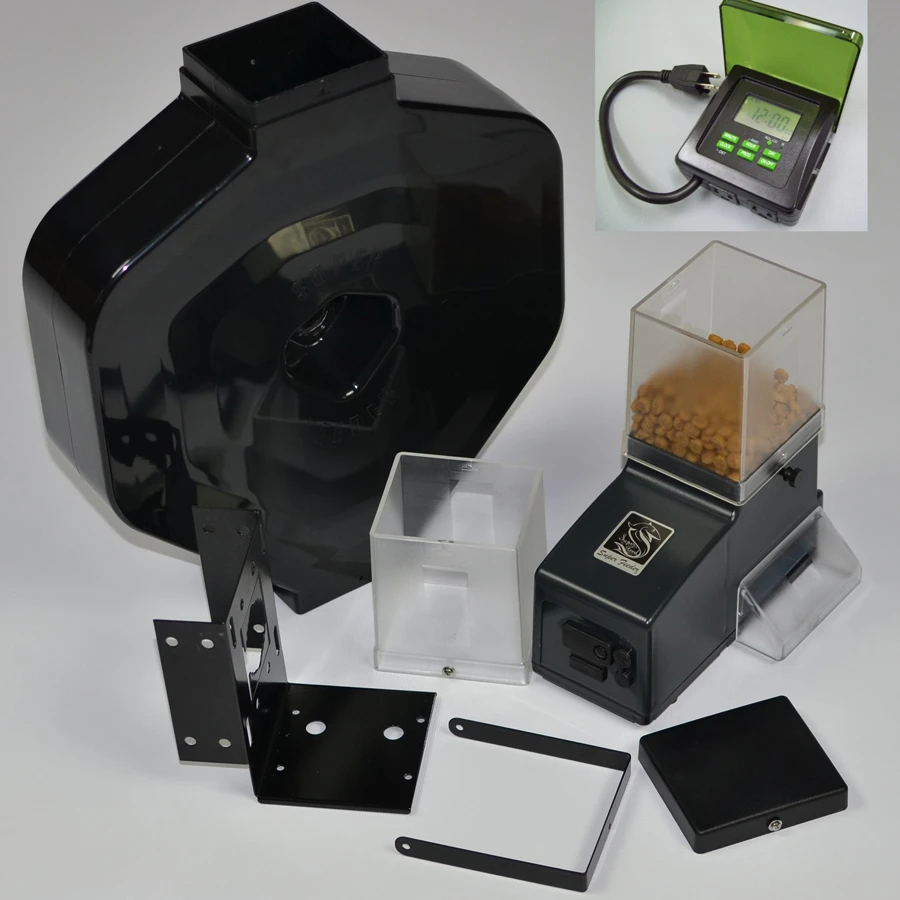

This Super Feeder holds up to 1.8 Gallon capacity and comes with an outdoor approved 120V power adapter with a voltage output of 12VAc ready to use with the supplied 120V ACDT-35 7-Day outdoor programmable timer, a combination which will supply up to a minimum of 20 daily feeding cycles. The power adapter has a 6' cord w/plug and comes with two crimp blade connectors and can be mounted to a wall or piece of lumber as well as the timer. Also included is a small indoor type power supply in the feeder’s box ONLY used to adjust feed cycle time (portion) in the comfort of your home before mounting feeder outside, after which time you will ONLY use the outdoor power supply to operate your feeder once mounted outside. THIS PACKAGE DEAL INCLUDES 50' OF WIRE. Voltage required: Power supply (supplied) 120V-60Hz 12VAC or DC output, all timers 120V 60Hz--Wi-Fi Socket 110V-240VAC 50-60Hz. USA style plugs only-not battery operated but could be. All you will need to do is mount the feeder to a 2x4 or pipe of your own design (pipe mount shown not supplied). If a 120V power source is not available, you may even use any of our 6-24V timers listed here to use your own low voltage power source (some wiring required).
OVERALL SIZE: Feeder overall size mounted (space needed): 12 x 3 x 22 inches tall

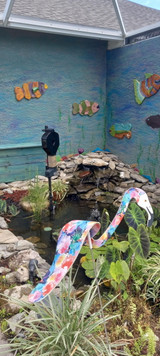

Mounting examples: http://www.super-feed.com/outdr.html
INTERNATIONAL CUSTOMERS WITH 220-240V: Please click on "Q&A/Shipping" above and http://www.super-feed.com/international_order_policy.htm
How to use the feeder with a regular external timer: Basically any plug-in timer like a lamp timer can be used. Just follow directions included in feeder's manual.
How to use feeder with a home automation system: Y
For Wi-Fi control, we recommend a system like the Wemo Wi-Fi switch by Belkin. We also recommend various systems that are currently being used available at smarthome.com Note: Many Wi-Fi systems offered on the market today are perpetually vulnerable to perpetual changes and updates that can quickly render some products unusable. In regards to other Wi-Fi switches on the market, some may not work if the socket does not turn off completely (some do and some may not), meaning that any residual power coming out of it during its off time will prevent the feeder from resetting itself between programmed feed cycles.
You can plug the supplied power adapter into a 100-240V module controlled by your system. You then turn the module on for a couple of minutes with your system, which in turn triggers and powers the feeder. The feeder runs only for time in seconds you adjusted the feeder to give you the portion you want and then stops. When you turn the power off for a couple of minutes, the feeder resets itself and is once again ready to be triggered at the next programmed time. If your system has 12 to 24 volts output ac or dc, you can do away with the feeder's own power adapter and hook directly to the feeder. You could also control the feeder's run time entirely with your external system by setting the feeder's feed time controller to its maximum setting of 70 seconds. NOTE: Iris brand "smart outlet" in-wall has been reported to work with smart phone. Z-Wave Smart Outlet the "Quirkey+GE Outlink Smart Outlet systems will work. Some systems by Leviton may not work properly due to the fact that their systems such as Z-Wave module, Z-Wave receptacle and dimming modules may not completely turn off and thus not work with the Super Feeder. Any socket must not bleed any voltage while in off mode.
Examples of home automation systems used:
Remote-Controllable Dual Outlet: http://www.smarthome.com/insteon-2663-222-on-off-outlet-white.html/
