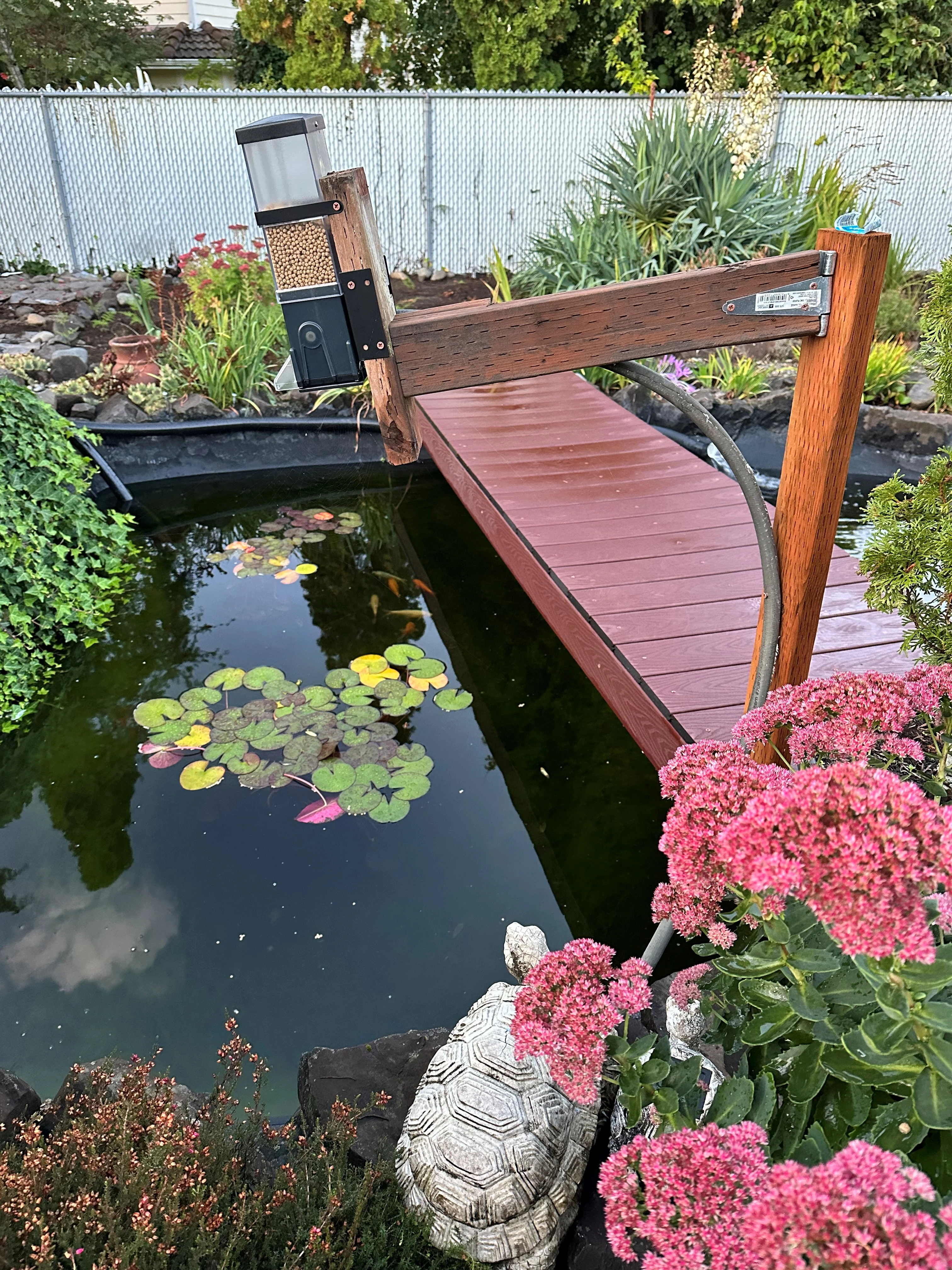

Mounting hardware Outdoor power adapter (not to be used along with small supplied power supply) Supplied additional indoor type power supply only to be used to pre-adjust feeder (not to be used with outdoor power supply) Outdoor analog timer (style could vary) 50" wire Clear extension (2 supplied) KSF-2 koi pond automatic feeder with outdoor power supply/analog timer and 50' wire KSF-2 mounted to PVC pipe

Auto Koi Feeder,13B,KSF-2,Odr Trans,ACAT-32 Odr Anlg Timer,Wire

Super-Feed
$196.30 $156.32 (You save $39.98)
Be the first to leave a review
SKU deal13b
Weight 7.00 LBS
Height 11.00
Width 13.00
Depth 11.00
Availability FREE DOMESTIC SHIPPING ! Normally ships same or next business day with delivery average time of 1-4 days depending on delivery address. For details, click "DISCOUNTS/FREE SHIPPING" under "PAGES" column located in black footer section of each page.
Bulk Pricing
  • Buy 2 - 4 and get 5% off
  • Buy 5 or above and get 7% off

Made in USA for 23+ years!  Mount it outdoors or outdoors your very own way to fit your needs. Adjust it from very tiny to larger portions up to 24 times per day all year.

This automatic Koi pond Super Feeder holds up to 4 3/4 cups of dry fish food. The feeder can be mounted/hung to a small piece of 2 X 4 x 8" tall, PVC or metal pipe, a simple wood stand, etc...It  is not designed for free-standing. This combo includes 50 feet of wire, an outdoor 120V/12Vac output power supply and a standard indoor type power supply to first adjust your feeder portion before final mounting.  A very easy to program 120V analog timer is also included to trigger and power your Super Feeder up to 24 times per day (24 meals). Please note that you will need to build something of your own to mount it to and only includes metal mounting brackets with hardware and instructions.  The Feeder can dispense dry fish food pellets up to 1/2" diameter or even fish sticks (mix all together if you want).  It can also distribute flakes very well, but storing flakes outdoors is not recommended. If ever needed, its capacity could be increased later by purchasing additional clear extensions or a 1.5 gallon hopper available from Super-Feed. Power source required: 120V-60Hz. USA style plugs only-not battery operated but could be an option by purchasing a 12Vdc timer from Super-Feed. You may also operate the feeder with just about any other external timer to plug its power supply into.  As with any outdoor feeder, this feeder should of course be adequately protected from destructive wild animals, which should not be hard to do if mounted correctly.

Overall size of feeder (space needed): 7.25" x 3.25"  x 11.75" tall



Mounting examples: http://www.super-feed.com/outdr.html

INTERNATIONAL CUSTOMERS WITH 220-240V:  Please click on "Q&A/Shipping" above and http://www.super-feed.com/international_order_policy.htm

How to use the feeder with a regular external timer: Basically any plug-in timer like a lamp timer can be used. Just follow directions included in feeder's manual.

How to use feeder with a home automation system:  You can plug the supplied power adapter into a 120V module controlled by your system.  You then turn the module on for a couple of minutes with your system, which in turn triggers and powers the feeder.  The feeder runs only for time in seconds you adjusted the feeder to give you the portion you want and then stops.  When you turn the power off for a couple of minutes, the feeder resets itself and is once again ready to be triggered at the next programmed time.  If your system has 12 to 24 volts output ac or dc, you can do away with the feeder's own power adapter and hook directly to the feeder.  You could also control the feeder's run time entirely with your external system by setting the feeder's feed time controller to its maximum setting of 70 seconds. NOTE:  If enclosed out of weather, we recommend our Wi-Fi socket listed on this store as ACWIFI Socket for iPhone control (see details).  Systems below have also been known to work fine.  Iris brand "smart outlet" in-wall has been reported to work with smart phone.  Z-Wave Smart Outlet the "Quirkey+GE Outlink Smart Outlet systems will work. Some systems by Leviton may not work properly due to the fact that their systems such as Z-Wave module, Z-Wave receptacle and dimming modules may not completely turn off and thus not work with the Super Feeder.

Examples of home automation systems used:



For Wi-Fi control, we recommend a system like the Wemo Wi-Fi switch by Belkin.  We also recommend various systems that are currently being used available at smarthome.com   Note:  Many Wi-Fi systems offered on the market today are perpetually vulnerable to perpetual changes and updates that can quickly render some products unusable.  In regards to other Wi-Fi switches on the market, some may not work if the socket does not turn off completely (some do and some may not), meaning that any residual power coming out of it during its off time will prevent the feeder from resetting itself between programmed feed cycles.



You can plug the supplied power adapter into a 100-240V module controlled by your system.  You then turn the module on for a couple of minutes with your system, which in turn triggers and powers the feeder.  The feeder runs only for time in seconds you adjusted the feeder to give you the portion you want and then stops.  When you turn the power off for a couple of minutes, the feeder resets itself and is once again ready to be triggered at the next programmed time.  If your system has 12 to 24 volts output ac or dc, you can do away with the feeder's own power adapter and hook directly to the feeder.  You could also control the feeder's run time entirely with your external system by setting the feeder's feed time controller to its maximum setting of 70 seconds.  NOTE:  Iris brand "smart outlet" in-wall has been reported to work with smart phone.  Z-Wave Smart Outlet the "Quirkey+GE Outlink Smart Outlet systems will work. Some systems by Leviton may not work properly due to the fact that their systems such as Z-Wave module, Z-Wave receptacle and dimming modules may not completely turn off and thus not work with the Super Feeder.  Any socket must not bleed any voltage while in off mode.



Camera: http://www.smarthome.com/insteon-75790wh-wireless-security-ip-camera-with-pan-tilt-and-night-vision.html

Remote-Controllable Dual Outlet: http://www.smarthome.com/insteon-2663-222-on-off-outlet-white.html/

Video examples:

https://www.youtube.com/watch?v=KmMBQZNSxwA

https://www.youtube.com/watch?v=_NzVyJHk5qw
