Aquarium fish feeder with indoor type analog (mechanical) timer

Automatic Aquarium Feeder,Deal 6, ACAT-23 Analog Timer

$145.90 $125.87 (You save $20.03)
Be the first to leave a review
SKU deal6
Weight 3.30 LBS
Height 7.00
Width 13.00
Depth 11.00
Availability FREE DOMESTIC SHIPPING ! Normally ships same or next business day with delivery average time of 2-8 days to most USA locations. For details, click "DISCOUNTS/FREE SHIPPING" under "PAGES" column located in black footer section of each page.
Bulk Pricing
  • Buy 2 - 4 and get 5% off
  • Buy 5 or above and get 7% off

Made in USA for 23+ years! Add flakes, pellets or mix of dry fish food, pre-adjust portion size/timing and use the supplied easy to program analog timer to feed your fish up to 48 times per day, all days of the year.

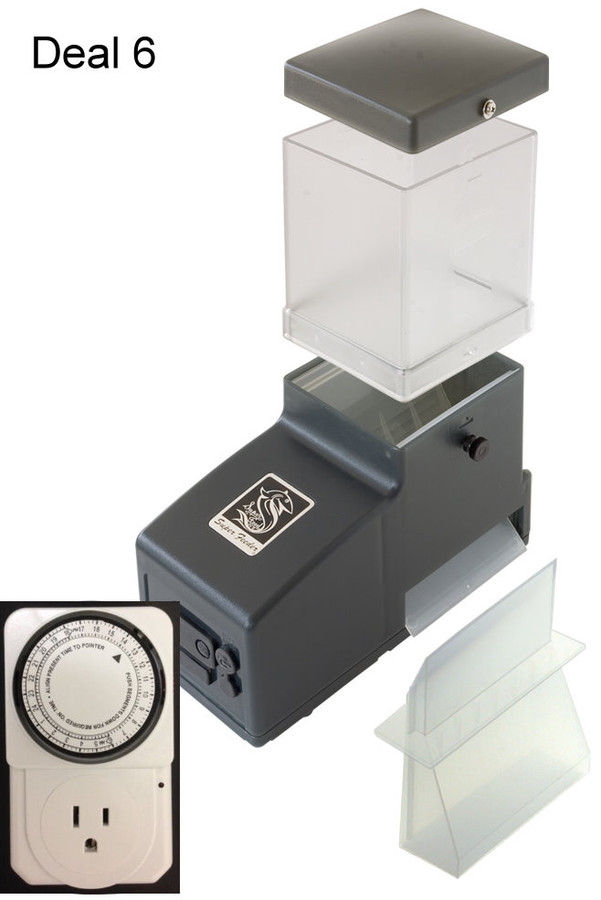

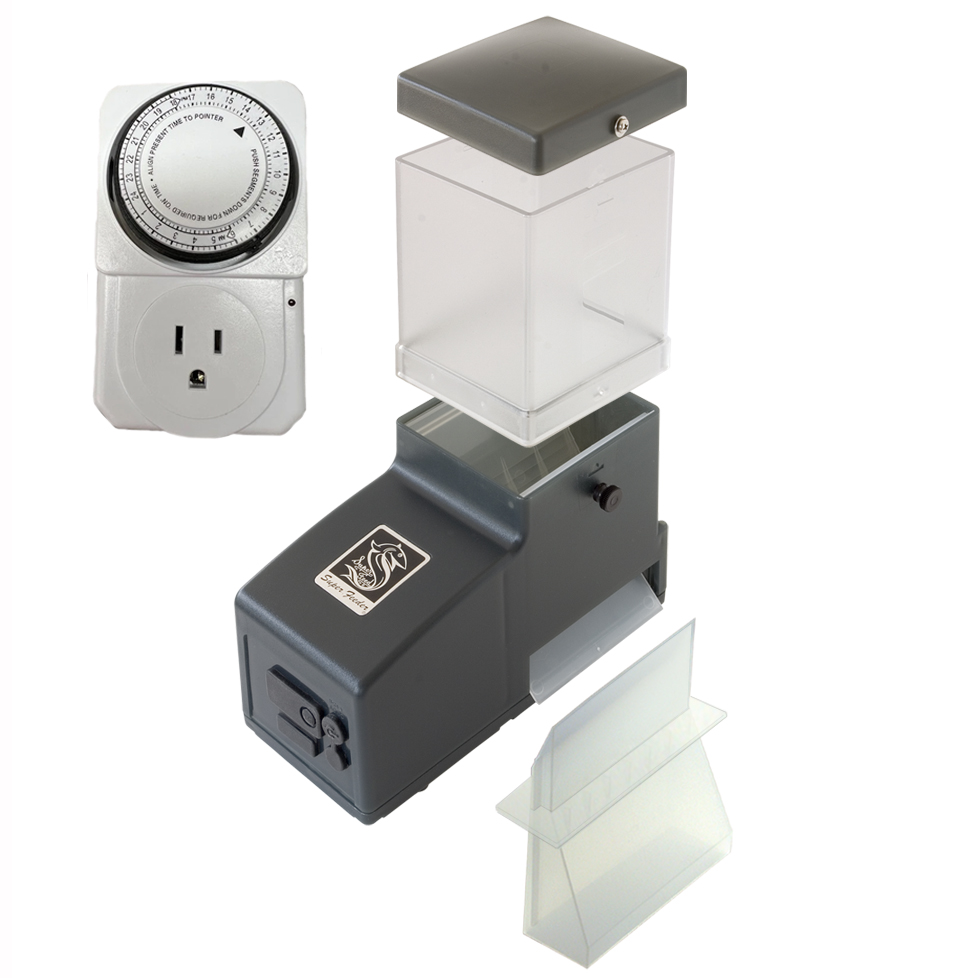

This high-end aquarium feeder package deal includes: Up to 22oz capacity aquarium Super Feeder® using the supplied 2-cup hopper extension (the main body holds 3/4 cup), power adapter, "Moisture Trap" funnel for flake use, installation instructions, and one extremely easy to program ACAT-23 24-hr analog timer for up to 48 feed cycles per day (timer style may vary). You can use this feeder for feeding all types of small animals like turtles as well. It will feed all types of dry food like flakes, granules, fish sticks, and pellets up to 3/8" diameter (mix them all together).  Voltage required: Power supply (supplied) 110-240VAC 50-60Hz 12VDC output. All timers 120V 60Hz- Wi-Fi Socket 110V-240VAC 50-60Hz. USA style plugs only-not battery operated.


Installation example:


INTERNATIONAL CUSTOMERS WITH 220-240V:  Please click on "Q&A/Shipping" above and

How to use the feeder with a regular external timer: Basically any plug-in timer like a lamp timer can be used. Just follow directions included in feeder's manual.

OVERALL SIZE: Feeder overall size (space needed): 7 1/4" x 3 1/4" x 8 1/4" tall with one extension installed or 4 3/4" tall with just dispenser.

How to use feeder with a home automation system:  You can plug the supplied power adapter into a 100-240V module controlled by your system.  You then turn the module on for a couple of minutes with your system, which in turn triggers and powers the feeder.  The feeder runs only for time in seconds you adjusted the feeder to give you the portion you want and then stops.  When you turn the power off for a couple of minutes, the feeder resets itself and is once again ready to be triggered at the next programmed time.  If your system has 12 to 24 volts output ac or dc, you can do away with the feeder's own power adapter and hook directly to the feeder.  You could also control the feeder's run time entirely with your external system by setting the feeder's feed time controller to its maximum setting of 70 seconds.  NOTE:  We recommend our Wi-Fi socket listed on this store as ACWIFI Socket for iPhone control (see details).  Systems below have also been known to work fine.  Iris brand "smart outlet" in-wall has been reported to work with smart phone.  Z-Wave Smart Outlet the "Quirkey+GE Outlink Smart Outlet systems will work. Some systems by Leviton may not work properly due to the fact that their systems such as Z-Wave module, Z-Wave receptacle and dimming modules may not completely turn off and thus not work with the Super Feeder.

Examples of home automation systems used with this feeder:


Remote-Controllable Dual Outlet:

Video examples:

See installation on large salt water tank:
