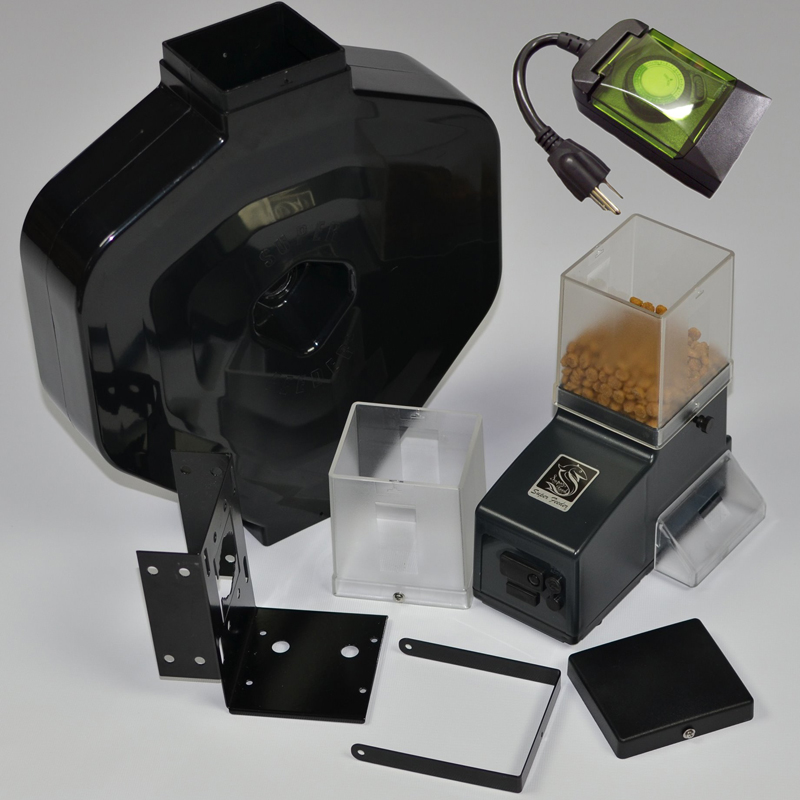

Free shipping on all Super Feeders! (and, also tax-free order exept to TN) Take a look at our most popular outdoor extremely versatile super feeder combo! NOTE: PICTURE OF PROTECTIVE WOOD CAGE/ENCLOSURE FRAMING IS ONLY ONE OF MANY MOUNTING EXAMPLES FROM A PAST CUSTOMER'S OUTDOOR CUSTOM INSTALLATION AND IS NOT SUPPLIED. You may visit this page for a plastic piping delivery. Mount it to a wall using a 2x4 stud indoors or outdoors. This feeder can be electronically adjusted to feed from a very small amount to a cup or more with multiple cycles. Combo Deal includes: Oudoor power supply kit and outdoor approved 24-hr Analog (mechanical ACAT-32) timer to give your pets up to 24 meals per day, all days of the week/year, CSF-3 Super Feeder with two tough polycarbonate 2-cup clear extensions plus a 1.5 gallon hopper (stack together for total of about 28 cups-5 lbs), a polycarbonate chute cover protective device over the chute opening and all mounting hardware including a black powder-coated metal "L" shaped mounting bracket and two metal straps. Included with the power supply kit: One 6' short cord with a special screw-type sealed connector at one end to fit the power supply's output and a jack plug at the other end to fit the Super Feeder's side input jack (convenient for indoor testing before outdoor mounting). One long 30' long wire is also included to reach the Super Feeder with a special screw-type sealed connector at one end to fit the power supply's output and metal spade connectors at the other end to fit the feeder's auxiliary input terminals underneath its floor (this cord should be used outdoors). As an added bonus if ever needed to use your own wire, a coaxial plug-to-wire adapter is included with this kit.
SEE ALL OUR CUSTOMER EXPERIENCES/REVIEWS AND PICTURES!
Original CSF-3XL Super Feeder serviceable for years to come, made in USA and sold by Super-Feed for over 27 years! All parts readily available and easy to replace if ever needed. Combo mounts outdoors to fit your pet's needs. Set portion size from very tiny to larger portions. Feed up to 24 times per day using included analog timer.
Voltage required: Power supply 110-120Vac 60Hz/12Vac output . Analog timer 120Vac 60Hz input/120Vac output. USA style plugs only-not battery operated. If a 120V power source is not available, you may even use any of our 6-24V timers listed here to use your own low voltage power source (some wiring required).
When mounting this feeder outdoors, make sure you protect the chute opening from animals like raccoons with a guttering system or enclosing the feeder appropriately. CHUTE COVER IMPORTANT NOTE: EVEN THOUGH THE CHUTE COVER WILL PROTECT THE CHUTE OPENING FROM THE OUTDOOR ELEMENTS, IT WILL NOT PROTECT INTRUSION BY LARGE ANIMALS, PARTICULARLY RACCOONS WHO COULD BREAK IT OFF. THE CHUTE AREA SHOULD BE ADEQUATELY PROTECTED BY AN EXTERNAL DEVICE OR THE FEEDER INSTALLED IN AN ENCLOSURE OF SOME TYPE AS SHOWN THROUGHOUT OUR WEBSITES WITH PAST CUSTOMER PICTURES. If indoors, you may consider a combo with fitted plastic stand/bowl and timer.
NOTE: Small 1/4" round (spherical) kibbles like offered by Science Diet or other brands are recommended for best portion accuracy, but most other kibbles will work fine up to 5/8" diameter with perhaps a slightly reduced portion accuracy. Please be aware that the feeder will not “count’ kibbles, but tests have shown that an overall portion accuracy of +/- 0.1 to 0.2 ounce from one portion to another is possible. Although performance is guaranteed with recommended food as described, please be advised that due to variance of kibble sizes and shapes, 100% portion accuracy simply cannot be guaranteed for all feed cycles. That would of course apply to any feeder other than one with pre-filled compartments.
NOTE: USING A NAME BRAND LIKE "SCIENCE DIET" IS ONLY A BRAND EXAMPLE.
In example above, two 1.5 gallon hoppers could even be added to feeder for a total capacity of about 48 cups of food (approximately 10 lbs). Total height about 39 inches.
Three pictures above of a very cool installation are shared with us by Jason B. a recent customer.
3 great pictures above have been shared with us all by Bill D. of Licking,MO. Very neat protective setup!!
Customer examples of various outdoor installations.
REVIEWS AND PICTURE GALLERY FROM CUSTOMERS
INTERNATIONAL CUSTOMERS WITH 220-240V
IMPORTANT NOTE FOR THIS COMBO! DO NOT EVER hook-up 2 power adapters/transformers at one time when setting up this combo. You may damage your feeder and/or other accessories and void your warranty. The standard SMALL power adapter included with all feeders is only to initially run and adjust your feeder indoors before final mounting outdoors using only the outdoor power adapter/transformer by itself. You may of course also use the small power adapter/transformer indoors by itself if you ever want to. ALSO, to program the supplied outdoor timer, only use the instructions supplied by the timer manufacturer to program the times you want to feed per day (on-off cycles).
How to use the feeder with a regular external timer: Basically any plug-in timer like a lamp timer can be used. Just follow directions included in feeder's manual.
OVERALL SIZE: CSF-3XL Feeder overall size (space needed): 12 x 3 x 22 inches tall
How to use feeder with a home automation system:
Note: Many Wi-Fi systems offered on the market today are perpetually vulnerable to perpetual changes and updates that can quickly render some products unusable. In regards to other Wi-Fi switches on the market, some may not work if the socket does not turn off completely (some do and some may not), meaning that any residual power coming out of it during its off time will prevent the feeder from resetting itself between programmed feed cycles.
You can plug the supplied power adapter into a 100-240V module controlled by your system. You then turn the module on for a couple of minutes with your system, which in turn triggers and powers the feeder. The feeder runs only for time in seconds you adjusted the feeder to give you the portion you want and then stops. When you turn the power off for a couple of minutes, the feeder resets itself and is once again ready to be triggered at the next programmed time. If your system has 12 to 24 volts output ac or dc, you can do away with the feeder's own power adapter and hook directly to the feeder. You could also control the feeder's run time entirely with your external system by setting the feeder's feed time controller to its maximum setting of 70 seconds. NOTE: Iris brand "smart outlet" in-wall has been reported to work with smart phone. Z-Wave Smart Outlet the "Quirkey+GE Outlink Smart Outlet systems will work. Some systems by Leviton may not work properly due to the fact that their systems such as Z-Wave module, Z-Wave receptacle and dimming modules may not completely turn off and thus not work with the Super Feeder. Any socket must not bleed any voltage while in off mode.
A great companion to this Super Feeder combo would be adding the Kasa KC120 Cam 1080p Smart Home Security Camera by TP-Link. Unlike so many other built-in cheap camera feeders, that separate day/night camera is perfect because you can place it where you want and vary the field of vision and close-up on whatever you want as well as being able to record, speak and listen to your pet. Makes a great pet monitoring system!
Examples of home automation systems used with this feeder:
Remote-Controllable Dual Outlet: http://www.smarthome.com/insteon-2663-222-on-off-outlet-white.html/
Video examples:
