Automatic Koi Feeder,Deal 13,KSF-2,Outdoor Tranformer,ACDT-35 Digital Timer,Wire

Automatic Koi Feeder,Deal 13,KSF-2,Outdoor Tranformer,ACDT-35 Digital Timer,Wire

Super Feed
$170.85 $154.95 (You save $15.90)
Be the first to leave a review
SKU deal13
Weight 8.00 LBS
Height 7.00
Width 15.00
Depth 11.00
Availability FREE DOMESTIC SHIPPING ! Normally ships same or next business day with delivery average time of 2-8 days to most USA locations. For details, click "DISCOUNTS/FREE SHIPPING" under "PAGES" column located in black footer section of each page.
Bulk Pricing
  • Buy 2 - 4 and get 5% off
  • Buy 5 or above and get 7% off

Made in USA for 23+ years!   Many modes of operation, indoor or outdoor applications and ease of  maintenance and repairs.  Trusted brand for years and years by thousands of customers.

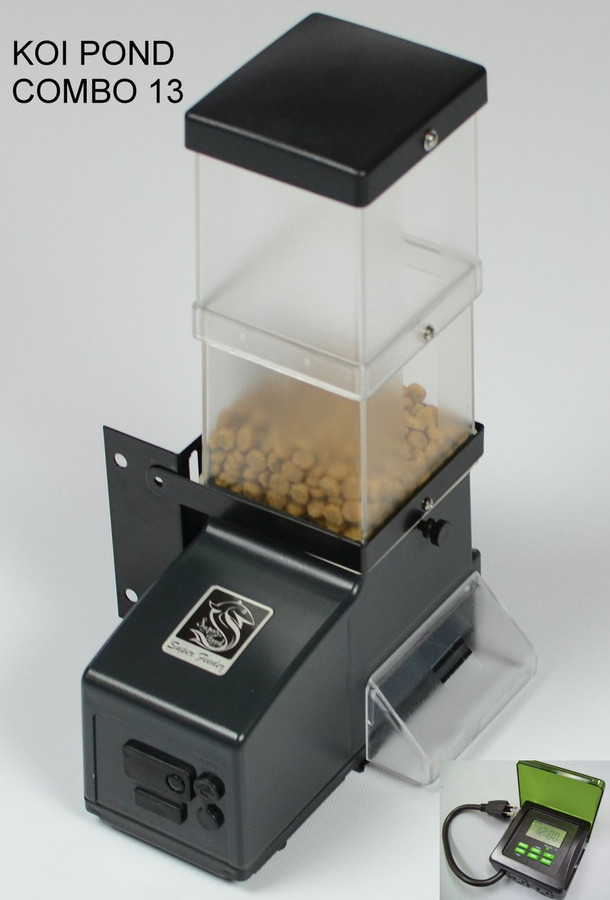

Great outdoor setup!! This Super Feeder holds up to 1 Quart and 3/4-Cup capacity and comes with an outdoor approved 120V power adapter with a voltage output of 12VAC ready to use with the supplied ACDT-35 120V 7-Day outdoor programmable timer with 2 outlets, a combination which will supply a minimum of up to 8 daily feeding cycles. The power adapter has a 6' cord w/plug and comes with two crimp blade connectors and can be mounted to a wall or piece of lumber as well as the timer. THE PACKAGE DEAL INCLUDES 50' OF WIRE. Voltage required: Power supply (supplied) 120V-60Hz 12VAC or DC output, all timers 120V 60Hz--Wi-Fi Socket 110V-240VAC 50-60Hz. USA style plugs only-not battery operated but could be.  If a 120V power source is not available, you may even use any of our 6-24V timers listed here to use your own low voltage power source (some wiring required).

OVERALL SIZE: Feeder overall size mounted (space needed): 7 x 3 x 12 inches tall

All you will need to do is mount the feeder to a 2x4 or pipe.


Mounting examples:

How to use the feeder with a regular external timer: Basically any plug-in timer like a lamp timer can be used. Just follow directions included in feeder's manual.
OVERALL SIZE: Feeder overall size mounted (space needed): 7 x 3 x 12 inches tall

INTERNATIONAL CUSTOMERS WITH 220-240V:  Please click on "Q&A/Shipping" above and

How to use feeder with a home automation system: You can plug the supplied power adapter into a 120V module controlled by your system.  You then turn the module on for a couple of minutes with your system, which in turn triggers and powers the feeder.  The feeder runs only for time in seconds you adjusted the feeder to give you the portion you want and then stops.  When you turn the power off for a couple of minutes, the feeder resets itself and is once again ready to be triggered at the next programmed time.  If your system has 12 to 24 volts output ac or dc, you can do away with the feeder's own power adapter and hook directly to the feeder.  You could also control the feeder's run time entirely with your external system by setting the feeder's feed time controller to its maximum setting of 70 seconds. NOTE:  If enclosed out of weather, we recommend our Wi-Fi socket listed on this store as ACWIFI Socket for iPhone control (see details).  Systems below have also been known to work fine.  Iris brand "smart outlet" in-wall has been reported to work with smart phone.  Z-Wave Smart Outlet the "Quirkey+GE Outlink Smart Outlet systems will work. Some systems by Leviton may not work properly due to the fact that their systems such as Z-Wave module, Z-Wave receptacle and dimming modules may not completely turn off and thus not work with the Super Feeder.

Examples of home automation systems used with this feeder:


Remote-Controllable Dual Outlet:

Video examples:

1 year warranty except power adapter and timer not manufactured by Super Feed with 90 day warranty
